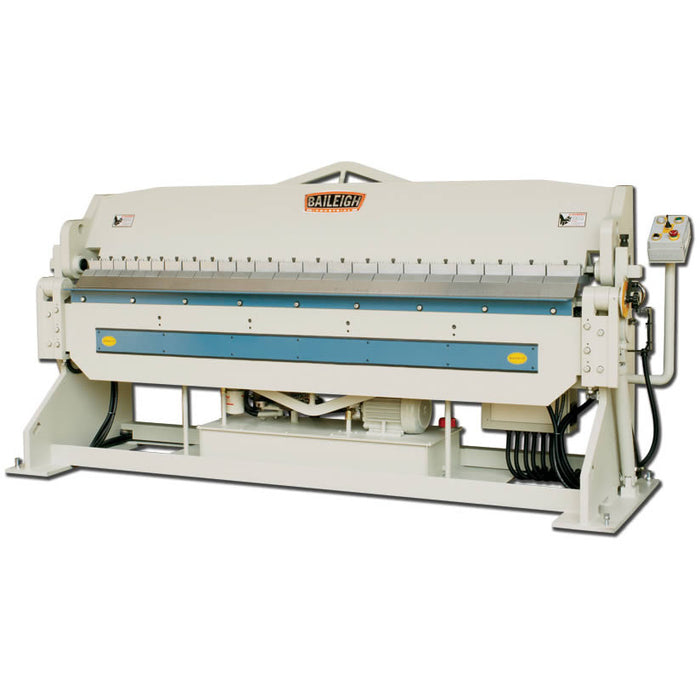

Designed with crowning compensation, the BB-9610H hydraulic sheet metal brake adjusts to fit the gauge you’re bending and produces uniform bends.
-
10 gauge mild steel sheet metal maximum capacity.
- Bends across its full 8-foot (96”) working width.
-
1” beam adjustment.
- Maximum bend angle of 135°.
-
Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades.
-
5 hp motor runs on 220-volt 3 phase power.
-
Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders.
-
Adjustable bend auto-stop simplifies production runs; just dial in your desired degree.
-
Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode.
- Includes 22 hardened 3-piece fingers (6 of 3", 4 of 4", 10 of 5" and 2 of 6" ) to create many different size boxes.
-
6” box depth maximum.
-
Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection—important when you’re bending heavy 10 gauge mild steel.
- Baileigh covers this hydraulic box and pan brake with a 1-year parts warranty.
- You can count on lifetime technical support by phone. Call us up anytime when you need help with the machine or advice on an application.
- We typically keep this sheet metal brake and replacement parts in stock for quick deliveries.
Questions? Not sure which metal brake is right for you? Give us a call at 1-(833) 415-8324 and talk to a Baileigh expert.
* specifications subject to change without notice.
