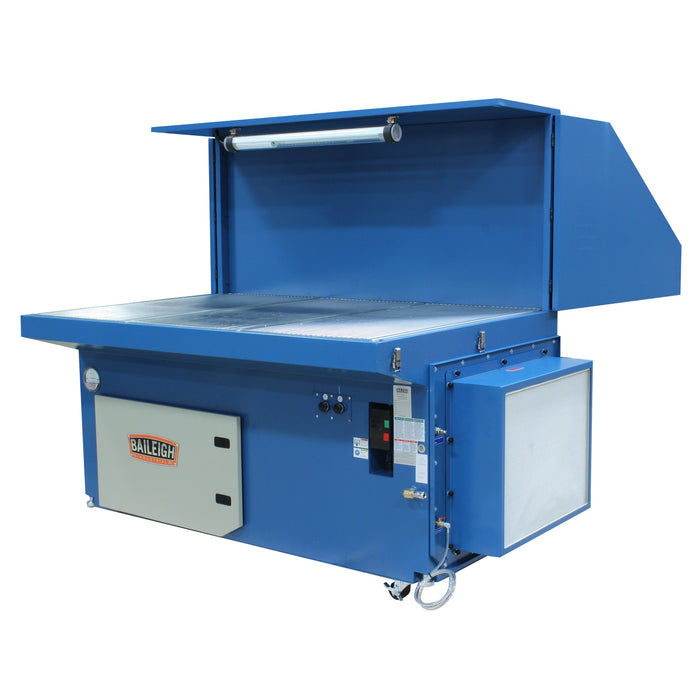

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufactureing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.

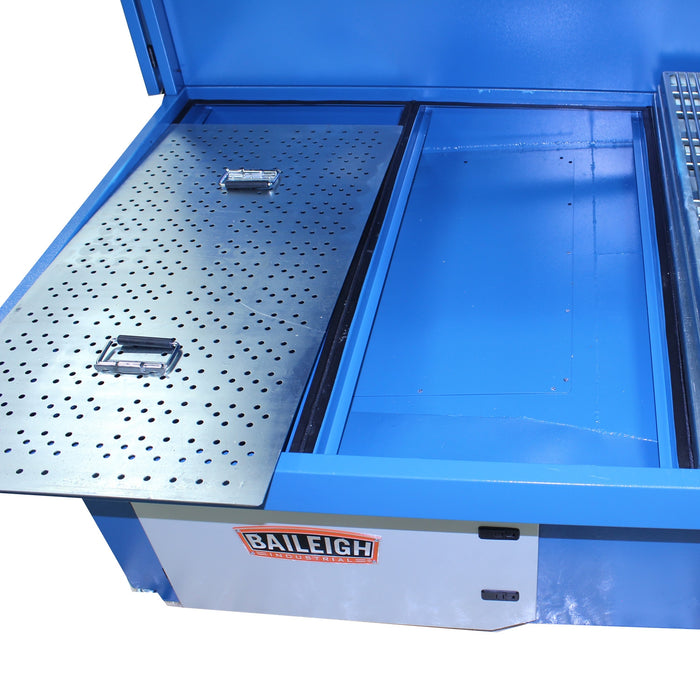

- 78" x 52" Working area

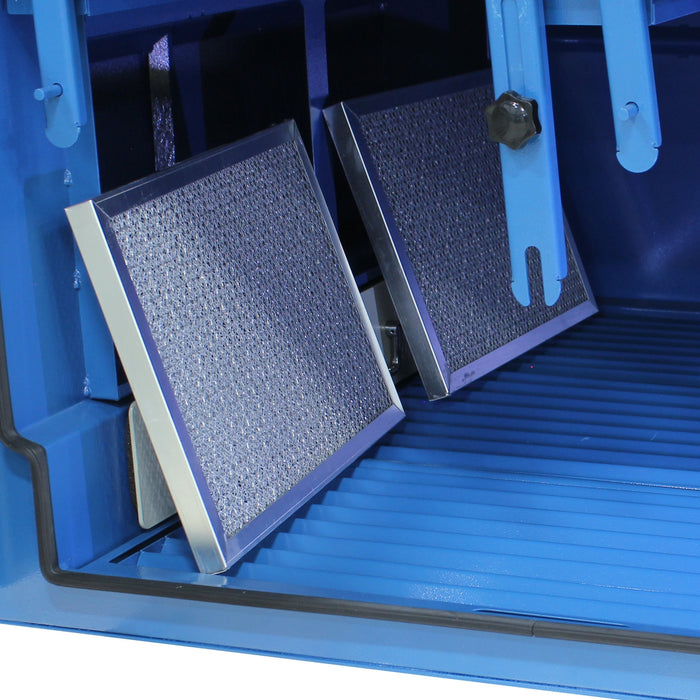

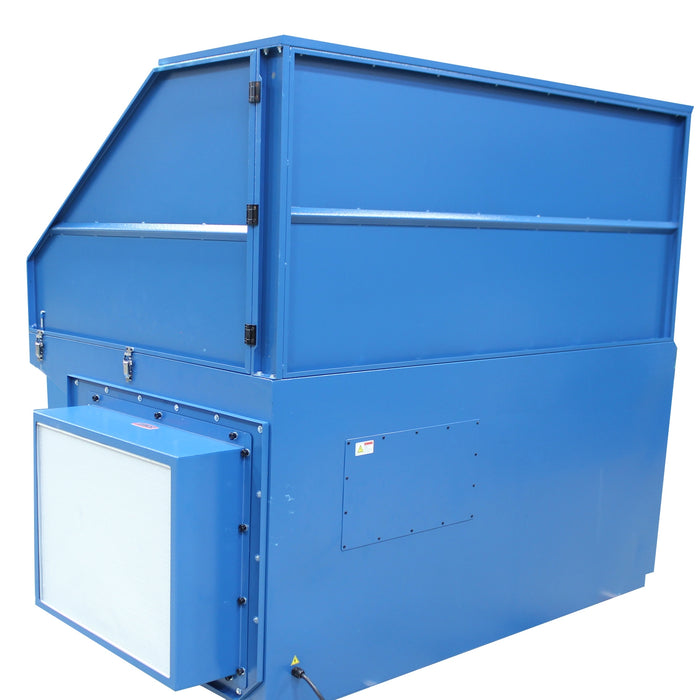

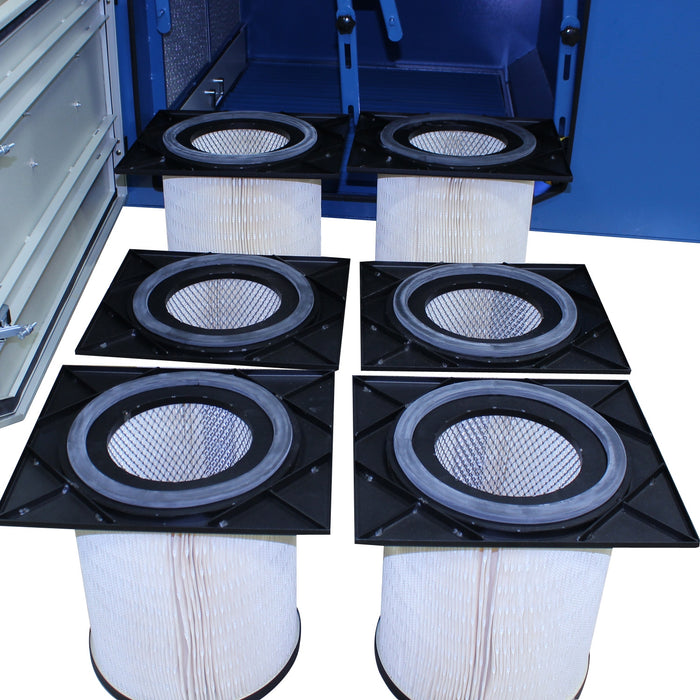

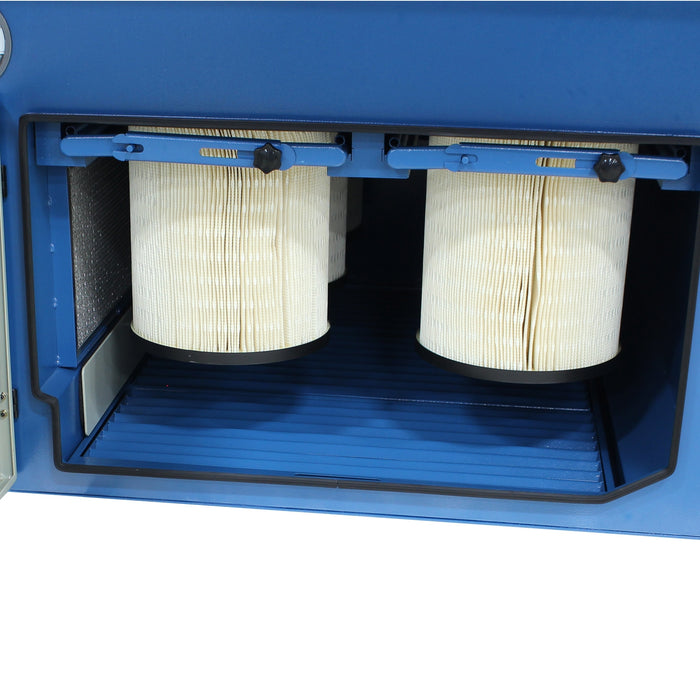

- Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileig
- CSAus listed
- 100% Tool free cleaning and filter maintenance/changes

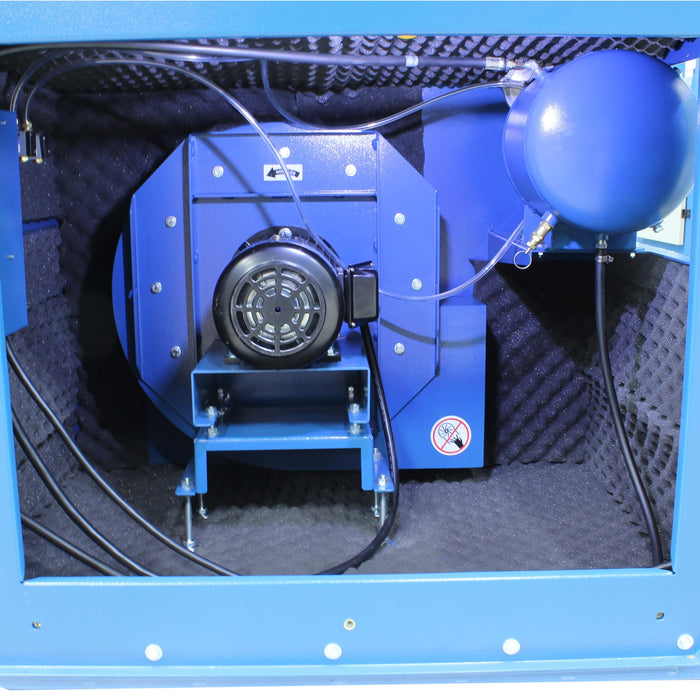

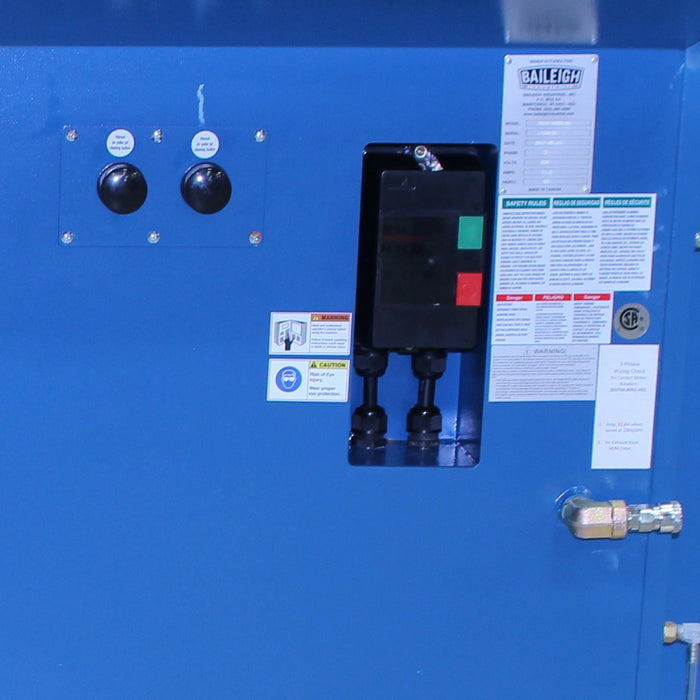

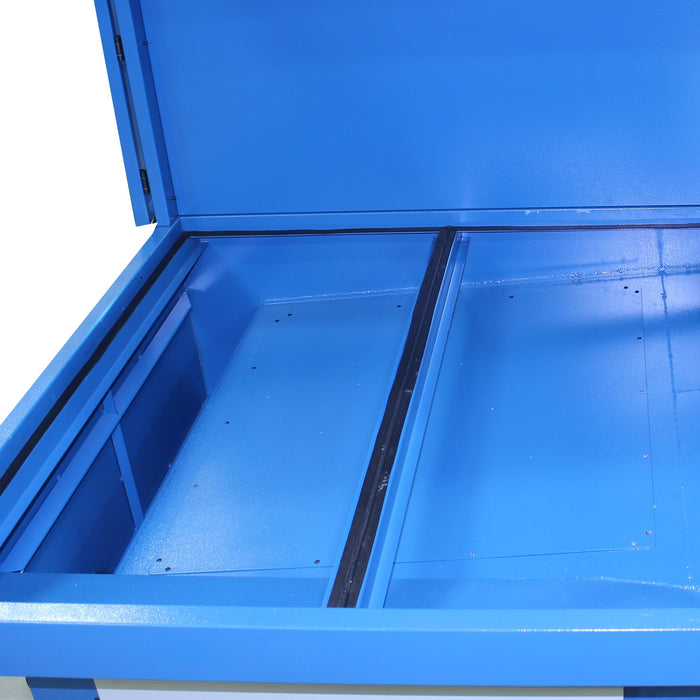

- Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed
- Safety – Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models)
- Fully Assembled – Simply uncrate, wire, and begin use
-TABLE LOAD CAPACITY –
Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface.
Concentrated Contact Surface Contact Weight
10% 221lbs (100gs)
20% 441lbs (200kgs)
30% 661lbs (300kgs)
40% 882lbs (400kgs)
50% 1102lbs (500kgs)
60% 1323lbs (600kgs)
70% 1543lbs (700kgs)
80% 1764lbs (800kgs)
For More infromation on the DDTM-8052-HD contact a Baileigh representative today at (833) 415-8324
* specifications subject to change without notice.
