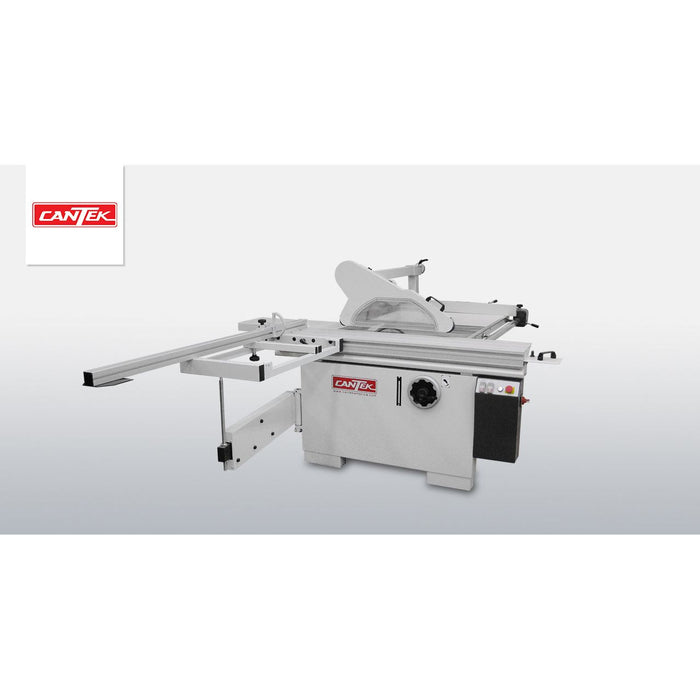

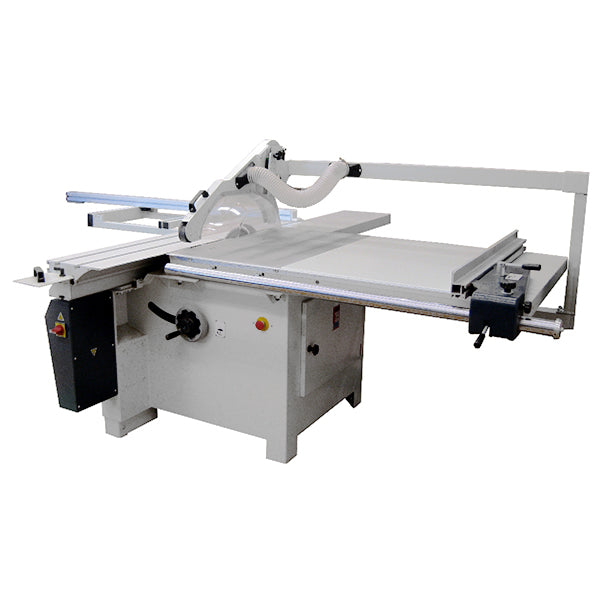

The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops.
Why Cantek P30 5′ Sliding Table Saw?

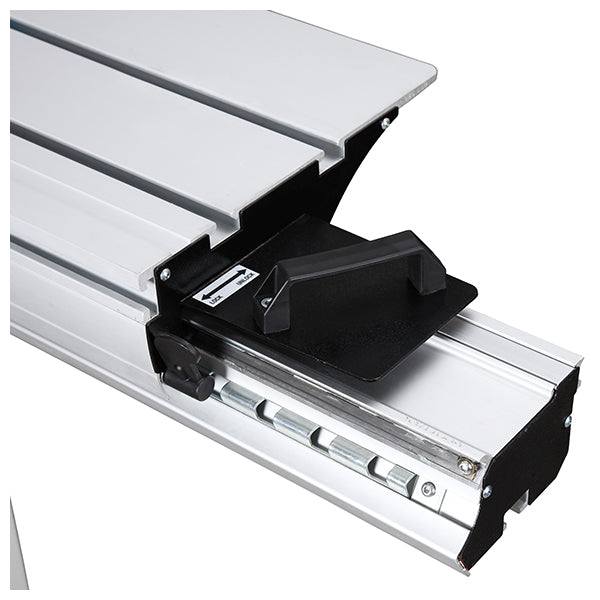

- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
- Powerful 5 HP main motor with ¾ HP scoring motor
- Heavy duty cast-iron rip fence with 51” cutting capacity

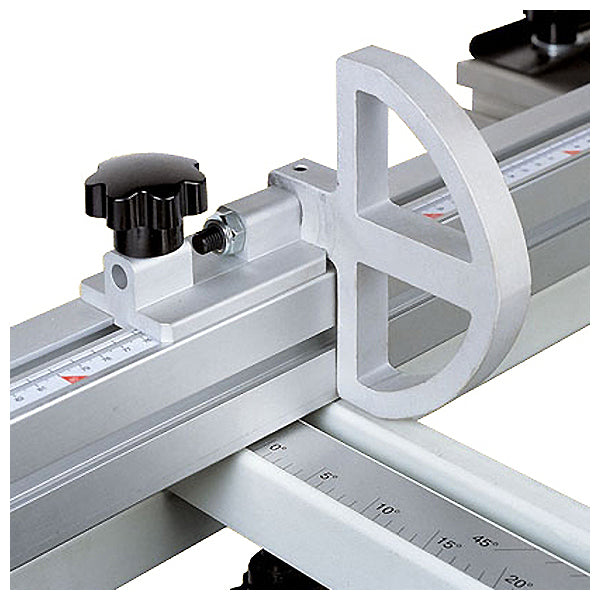

- Aluminum crosscut miter fence with (2) flip stops
- Manual rise/fall the main saw blade

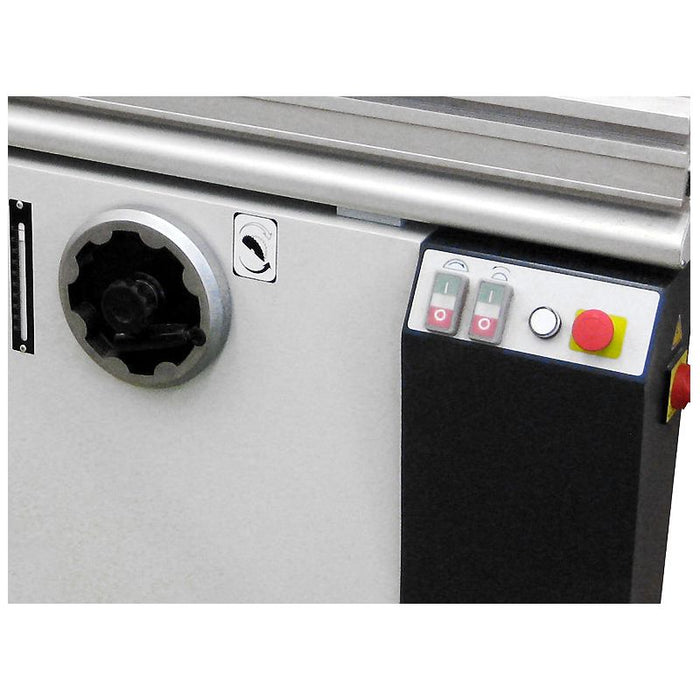

- Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel

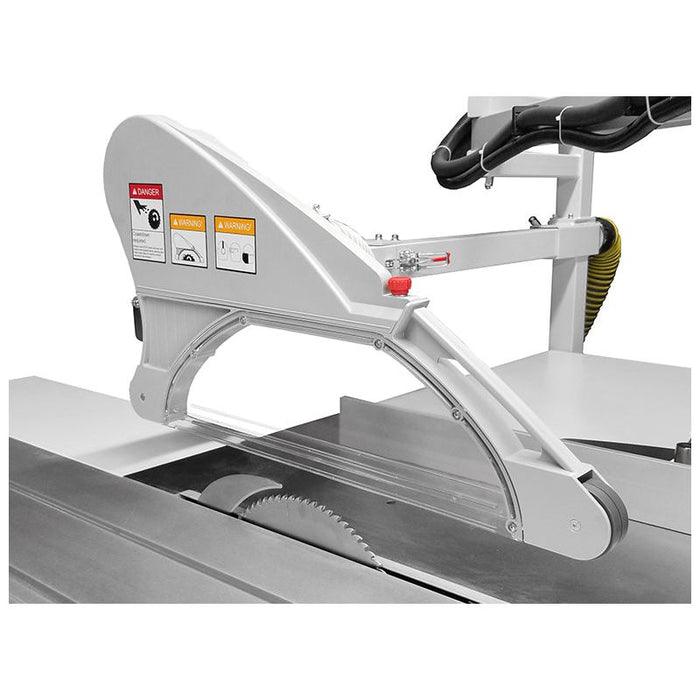

- Overarm blade guard with build in dust port
KEY ADVANTAGES
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Solid rip fence with manual fine adjustment and locking lever
- Easy to access external scoring adjustment
- Extension table at side and back of main table
- Optional Equipment Included:
- Eccentric hold down clamp
- CE Overarm Guard with Dust Port
- Wedge for Solid Wood Ripping
SPECIFICATIONS
|
Inch
|
Metric
|
Sliding table dimension
|
63″ x 12.4″
|
1600 x 315mm
|
Cast Iron table
|
21 ½” x 35 ¼”
|
548x896mm
|
Extension table (rear)
|
18″ x 17 ½”
|
470x896mm
|
Extension table (front)
|
12 ½” x 32 ½”
|
320x830mm
|
Table size
|
39 ½” x 68″
|
1018x1726mm
|
Main saw blade (Max.)
|
12″
|
305mm
|
Main saw bore
|
30mm
|
Max. cutting height at 90° (355mm)
|
3.54”
|
90mm
|
Max. cutting height at 45° (355mm)
|
2.48”
|
63mm
|
Main motor power
|
5 HP
|
Main blade speed
|
4000 RPM
|
Scoring saw blade
|
120mm
|
Scoring saw blade bore
|
20mm
|
Scoring blade motor power(optional)
|
3/4 HP
|
Scoring blade speed
|
8000 RPM
|
Cutting width – ripping
|
51”
|
1300mm
|
Cutting width adjustment
|
Manual
|
Main saw blade tilting adjustment
|
Manual (0°~ 45°)
|
Main saw height adjustment
|
Manual
|
Scoring saw height adjustment
|
Manual
|
Saw guard
|
CE Guard Included
|
Dust collection ports
|
(1) 4” / (1) 2.3”
|
(1) 100mm / (1) 60mm
|
Machine weight
|
984 lbs
|
447 kgs
|
Shipping weight
|
1151 lbs
|
523 kgs
|
Shipping dimensions
|
83” x 46” x 44”
|
2110 x 1150 x 1160mm
|
Electrics
|
230/1/60 = 34.9 Full Load Amps
|
230/3/60 = 18.4 Full Load Amps
|
|
575/3/60 = 7.4 Full Load Amps
|
